"Bsides 2k25": Abusing The TTY Line Discipline for Unauthenticated RCE

TL;DR

I bypassed the PHP substr sanitization to send an oversized payload to an expect script wrapping smbclient. By flooding smbclient with more data than its legacy 1024-byte password buffer could accept, I forced the excess characters to remain floating in the Pseudo-Terminal (PTY) input queue. When smbclient either failed authentication or dropped to a prompt, it (or the parent shell) immediately consumed those “leftover” bytes as the next command, resulting in Unauthenticated Remote Code Execution.

Challenge Overview

CTF: BSides Algiers 2025
Challenge: Expect
Category: Web
Points: 400-ish (had around 7 solves last time I checked)
Description: ?
Author: souad
Attachments:
- expect.zip

Introduction

In the recent BSides Algiers CTF 2025 (we secured top place btw~), there was this web challenge I couldn’t solve during the CTF, but was eager to attempt afterwards. It featured a tool called expect that served as a tool to automate interaction between a user and the terminal. As we’ll see, this wording of user and terminal is slightly inaccurate, and the knowledge of how terminals work will prove useful to solve this challenge.

Context & First Impressions

As you can see, the web app connects our SMB server, and pushes a dummy pdf file to our share. You might have noticed that I padded the password by a 100 As before typing the actual password and that’s due to the way the web app handles our password:

1
    $sharePwd = substr($_POST["password"], 100);

Where it returns only part of the password starting from the 101th character.

Interesting behavior, when solving the challenge, I remembered the famous buffer overflow, not in its memory corruption sense though. I wasn’t sure how this can prove useful, but I registered it as potential asset anyway.

Threat Model

Since the UI doesn’t give away much information, I dove into the source code of the application:

web-expect/
├── docker-compose.yml
├── Dockerfile
├── dummy_report.pdf
├── flag.txt
├── smbSendReport
└── src
    ├── index.php
    └── static
        ├── bootstrap.css
        └── stylesheet.css

3 directories, 8 files

We can see the dummy pdf file at the root of the challenge directory, it became obvious that I needed to make the server send me the flag file.

Other than the fluff (docker files and CSS), two files actually mattered:

index.php, and
smbSendReport

Let’s take a look at them.

1. `index.php`

1
<?php
2
$TEST_FILEPATH = "./dummy_report.pdf";
3

4
if (isset($_POST["service"]) && isset($_POST["dst_path"]) && isset($_POST["username"]) && isset($_POST["password"])) {
5
    $shareDomain = $_POST["service"];
6
    $dstPath = $_POST["dst_path"];
7
    $shareLogin = $_POST["username"];
8
    $sharePwd = substr($_POST["password"], 100);
9
    $timestamp = date(DATE_ATOM);
10

11
    $vals = [
12
        'service' => base64_encode($shareDomain),
13
        'username' => base64_encode($shareLogin),
14
        'command' => "put \"$TEST_FILEPATH\" \"$dstPath-$timestamp\"",
15
        'password' => $sharePwd
16
    ];
17

18
    $descriptors = [
19
        0 => ["pipe", "r"],
20
        1 => ["pipe", "w"],
21
        2 => ["pipe", "w"]
22
    ];
23

24
    $process = proc_open("/usr/local/bin/smbSendReport", $descriptors, $pipes);
25

26
    if (is_resource($process)) {
27
        foreach ($vals as $val) {
28
            fwrite($pipes[0], "$val\n");
29
        }
30

31
  // for debug
32
  //$stdout = stream_get_contents($pipes[1]);
33
  //var_dump($stdout);
34

35
        $exitCode = proc_close($process);
36

37
        if ($exitCode !== 0) {
38
            $success = false;
39
            $result = "An error occured";
40

41
        } else {
42
            $success = true;
43
            $result = "File uploaded sucessfully";
44
        }
45

46
    } else {
47
        $success = false;
48
        $result = "An error occured";
49
    }
50
}
51
?>

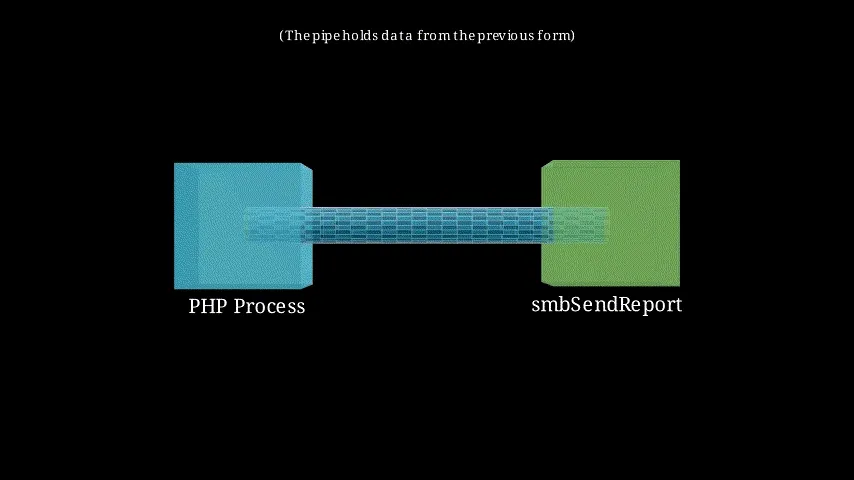

The script first takes input from the user, then passes that input to the smbSendReport process via its standard input. This essentially mimics a pipe situation in a command like:

echo 'hello world' | smbSendReport

The specifics of how this passing of data occurs is beyond the scope of this writeup, although you can take a look at this video which explains the underlying concepts behind this. Here’s an animation of how this happens (we’ll need these visualizations drilled down moving forward):

Piping on linux

2. `smbSendReport`

1
#!/usr/bin/expect
2

3
set timeout 2
4

5
set service [gets stdin]
6
set username [gets stdin]
7
set command [gets stdin]
8
set password [gets stdin]
9

10
set env(PS1) "> "
11
set prompt $env(PS1)
12

13
cd /var/www/reports/
14

15
spawn bash --noprofile --norc
16

17
expect {
18
    -re $prompt { send "smbclient -U \"\$(echo $username | base64 -d)\" \"\$(echo $service | base64 -d)\"\n" }
19
    timeout {puts "An error occured"; exit 1;}
20
    eof { exit 1 }
21
}
22

23
expect {
24
  -re "Password .*:" { send "$password\r" }
25
  timeout {puts "An error occured"; exit 1;}
26
}
27

28
expect {
29
  "smb: *\>" { send "$command\r" }
30
  timeout {puts "An error occured"; exit 1;}
31
}
32

33
expect {
34
  "putting file .*" { send "quit\r"; exit 0; }
35
  timeout {puts "An error occured"; exit 1;}
36
}
37

38
interact

This one is an expect script. Expect is a program that automates interactive terminal applications (smbclient in our case). It takes input from its stdin, which we’re passing data to from the php process and spawns bash to automate the interaction with.

Expect works matchings patterns based on the spawned process output, when:

The shell first spawns, it writes “> ” to its stdout. In that case, the first expect block fires:

1
expect {
2
    -re $prompt { send "smbclient -U \"\$(echo $username | base64 -d)\" \"\$(echo $service | base64 -d)\"\n" }
3
    timeout {puts "An error occured"; exit 1;}
4
    eof { exit 1 }
5
}

It takes the username and service from standard in, base64 decodes them and runs the smbclient command to connect to our smb server.

We are prompted for a password, we supply the password read from stdin:

1
expect {
2
  -re "Password .*:" { send "$password\r" }
3
  timeout {puts "An error occured"; exit 1;}
4
}

We establish a successful connection with the smb server, i.e. “smb: \> ” printed, we send a command, again read from stdin into the command variable to be executed in the smb session.

1
expect {
2
  "smb: *\>" { send "$command\r" }
3
  timeout {puts "An error occured"; exit 1;}
4
}

The only problem that’s preventing us from exfiltrating the flag file is the fact that the first argument in the command string is always the dummy pdf:

1
        'command' => "put \"$TEST_FILEPATH\" \"$dstPath-$timestamp\"",

Also, trust when I say, I looked for a million ways to have two commands execute in the same line, but none were found.

Note: Expect uses a language called TCL, you can read about it here

Since the code logic itself seemed secure, I realized the vulnerability might not be in the PHP or Tcl code, but in the medium through which they communicate: the Linux TTY subsystem.

TTYs and PTYs

Remember when I said that automating interaction between a user and the terminal is an inaccurate term, it turns out that expect automates your interaction with the bash shell (by extension the smbclient), using what we call a pseudo-terminal.

PTY Picture

As the picture shows, a pty is simple a data channel between 2 parties: expect and bash.

Expect, being the commander or the automator of the interaction controls its slave by sending it data through the PTY master, which is simply a file that can be written to (every in linux is a file btw~). Bash then reads from the PTY slave (a file also) as if it’s reading input from you typing on your keyboard. I won’t go into much details in this, because the work has already been done for me, rather, I will tie the challenge to this concept:

Because the PTY slave and master are both files, we can read from and write to them, linux identify these files using file descriptors. Expect uses this construct to identify the PTY master and writes to it, the pipeline in the middle (between the PTY master and slave) then carries this data to the slave, waiting to be read from. Bash comes and reads from the PTY slave, effectively consuming the data.

It should be noted that multiple processes can attach themselves to the PTY slave, and linux would control which ones access and the PTY and when. This is called job control

Here’s a live illustration of this write -> read process:

Having known the process by which data transfers between the automator (expect) and the automated (bash), we note that data needs to be consumed by the slave process before it gets used by it. More specifically, in our case:

Expect’s spawn creates a PTY.
Bash attaches itself to the PTY as a slave
Bash reads from the PTY the smbclient command.
Bash launches the smbclient as a child process,
smbclient now controls the PTY and can write/read from it.

This begs the question: What happens when smbclient refuses to read all the data from the PTY slave and closes itself? What happens to the remaining data in the buffer?

Bash’s event loop

To answer the case mentioned above, we take a look at bash’s source code:

1
int
2
main()
3
{
4
    fd_set fds;
5

6
    // irrelevant code...
7

8
    while(1) {
9
      FD_ZERO(&fds);
10
      FD_SET(fileno(stdin), &fds);
11

12
      if( select(FD_SETSIZE, &fds, NULL, NULL, NULL) < 0) {
13
        perror("select");
14
        exit(1);
15
      }
16

17
      if( FD_ISSET(fileno(stdin), &fds) ) {
18
        rl_callback_read_char();
19
      }
20
    }
21
}

The code above monitors the shell’s standard input (which is tied to the PTY remember), and waits for changes of the type “is there input?” to the kernel, if there is, i.e. PTY slave has data, bash reads it and processes it.

This should answer the question: If smbclient quits without reading all the buffered data, the remaining one gets consumed by bash and treated as input, input in bash means commands, commands mean RCE!

Exploitation

Now that we know the mechanism by which we get RCE, I’m simply too tired to dig the smbclient’s source code and find out how much data I need to do to overflow the password prompt and get my command to run, in the video, I did 1024 bytes + my command and it worked (neatly so wow):

Good, let’s do this through the web application, just bare in mind the line of code:

1
    $sharePwd = substr($_POST["password"], 100);

which takes the strings starting at index 100, so we need to add a 100 character to our payload

With that said, let’s git that flag shall we:

found flag

Bonus (unintended, but instructive!)

When I was researching the topics of TTYs and PTYs, I found out about a very interesting component that sits between the writing and consumption of data from the PTY channel. It’s called the line discipline.

Terminals can operate in two modes: cooked Or raw, the second one is out of the scope of this writeup (you can read about it here though), but the cooked mode, which is the default mode of operation for terminals has the idea that slave processes shouldn’t consume PTY data immediately, as users might make mistakes and intend on correcting them

I’m sure you had a time where you pressed backspace to delete a mistyped character haha~

This component, which sits at the n_tty.c, has a function called n_tty_receive_buf_standard which checks if the user types a control character (backspace…etc) to correct a mistake. Correcting a mistake means the kernel erases the undesired data from the kernel read buffer.

This is awesome! Having known this, we can just connect to our smb server normally, set the destination path to a LOT of backspaces (ironically, we can even do Ctrl-A Ctrl-K) to erase the naive dummy command, and instead send us the flag file.

The solve for this can be an exercise for the reader as homework to do (or for when I’m less busy to record a solve).

mic drop

Lessons learned

PTYs are State Machines, not just Pipes: Unlike standard pipes which act as simple data conduits, PTYs implement complex behaviors via the Line Discipline. Data left unread by one process isn’t discarded; it persists in the buffer for the next active process to consume.
Legacy Constraints still haunt us: Many standard Unix utilities (smbclient, su, sudo) still enforce archaic buffer limits (often 128 bytes) when reading passwords from a TTY. Knowing these magic numbers is crucial for overflow attacks.
“Expect” is Fragile: Automation scripts like expect rely on string parsing and assume the child process behaves perfectly. They rarely handle edge cases like partial reads or buffer overflows, making them prime targets for injection attacks.
The Kernel is the ultimate arbiter: The “Bonus” solution (using backspaces) reveals that data manipulation can happen inside the kernel (n_tty_receive_buf_standard) before the application ever sees it. Understanding kernel drivers can turn a “web” challenge into a “binary” exploitation path.
Read the Man Pages (and Source): The breakthrough came not from fuzzing, but from reading the bash event loop source code and understanding select(). Deep knowledge of how tools wait for input is often more powerful than blind payload testing.
